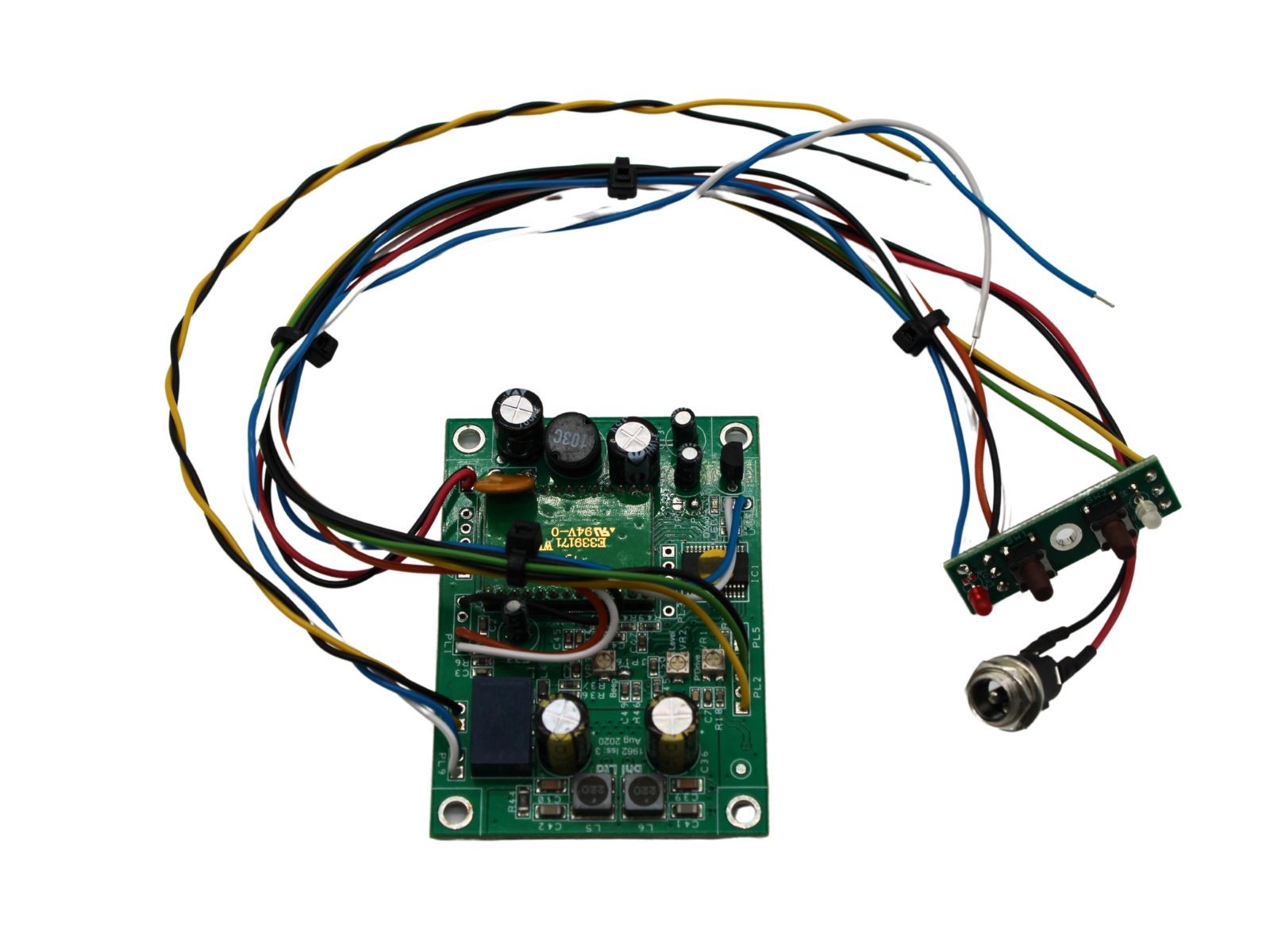

NEDSP1962-KBD Amplified DSP Noise Cancelling Loudspeaker Retrofit PCB Module
(£116.63 excl VAT)
The NEDSP1962-KBD is an advanced amplified DSP noise cancelling loudspeaker retrofit module designed to enhance audio performance across various extension speakers and communication devices.
- Incorporates bhi DSP noise cancelling technology
- Provides up to 40 dB of noise reduction and 65 dB of tone reduction
- Pre-wired module with easy retrofit capabilities for existing equipment
- Utilises a powerful programmable DSP audio processing chip
- Includes an on-board power amplifier controlled by a keyboard switch assembly
- Features a Texas Instruments 7W Mono Class-D audio power amplifier
- Delivers exceptional sound quality with 16-bit A/D converters

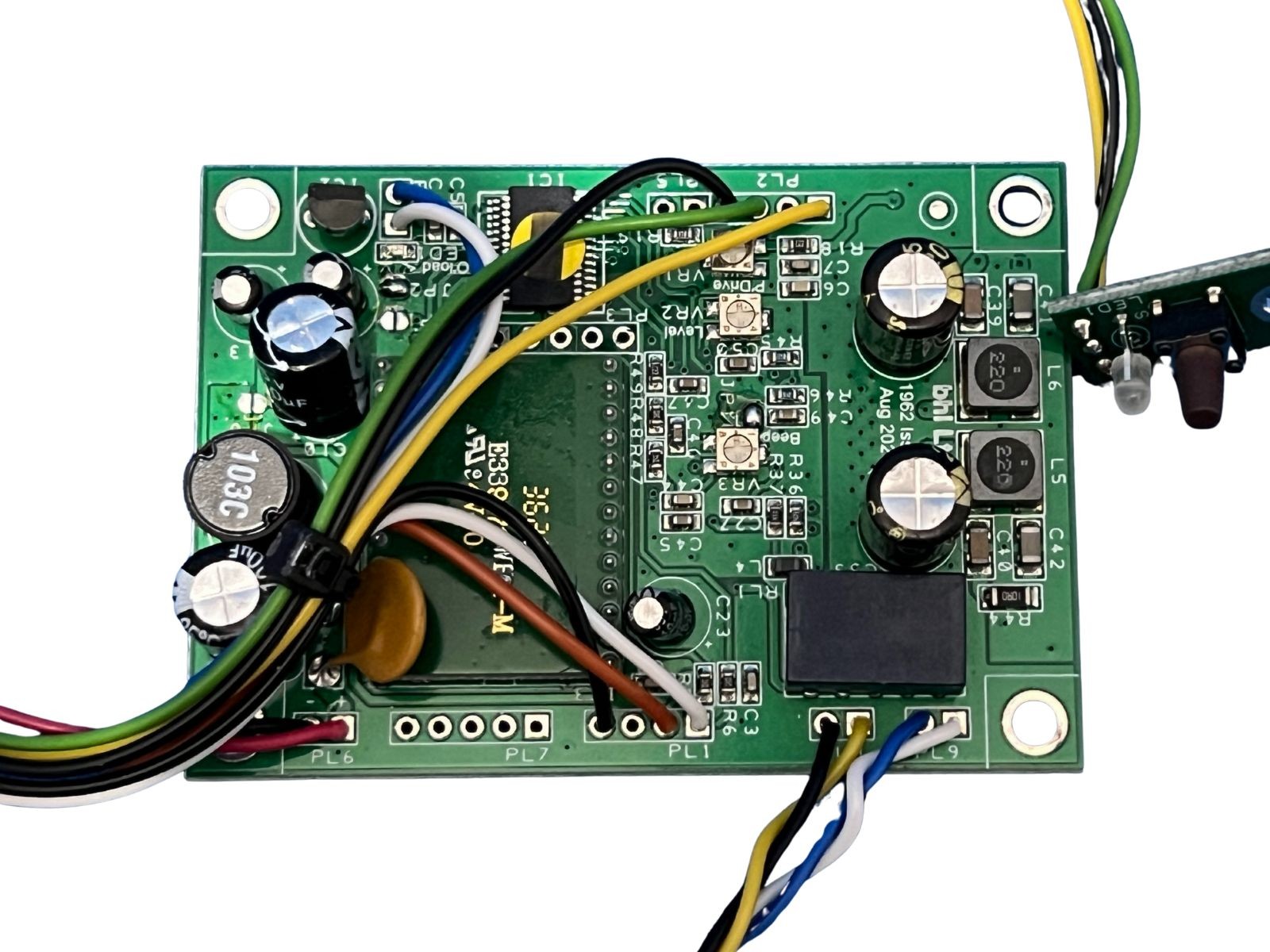

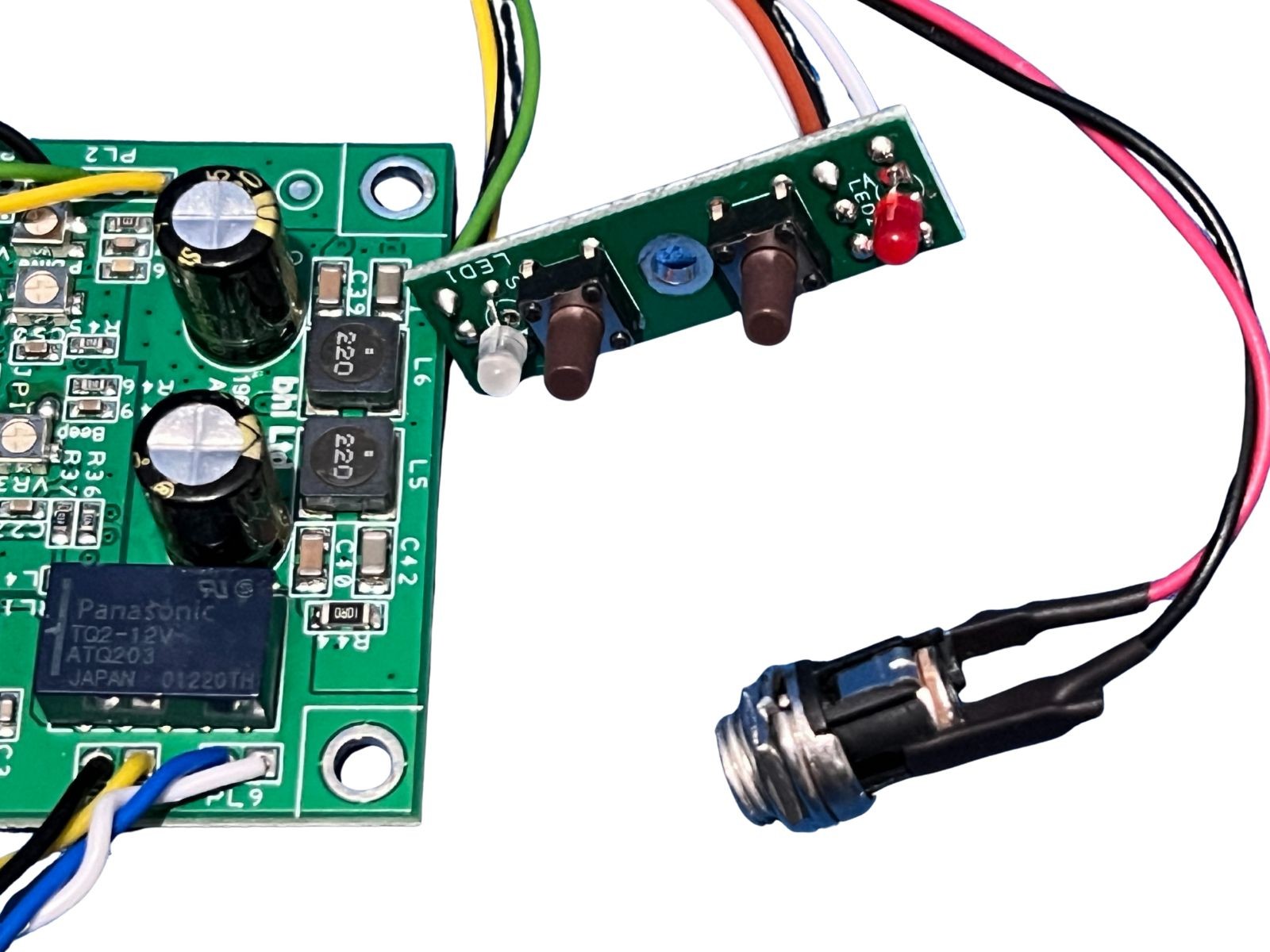

- Dimensions: main PCB: 70mm x 50mm x 15mm, small PCB 35mm x 11mm x 14mm
The NEDSP1962-KBD amplified DSP noise cancelling module can be retrofitted inside many types of extension speaker or older style radios and transceivers. By leveraging sophisticated digital signal processing, this module can effectively isolate and clarify speech within noisy environments, making it an ideal solution for radio enthusiasts, communication professionals, and audio equipment retrofitters.
The module's innovative design incorporates a highly efficient audio power amplifier that achieves an impressive 94% efficiency, eliminating the need for traditional heat sinking. This reduces the module's physical footprint and ensures optimal performance across a wide range of input voltages. With its flexible digital processing architecture and comprehensive audio signal chain, the NEDSP1962-KBD provides users with a versatile and powerful audio enhancement solution that can enhance speech in existing speakers and communication equipment.
Read the excellent review from Oct 24 RadCom.

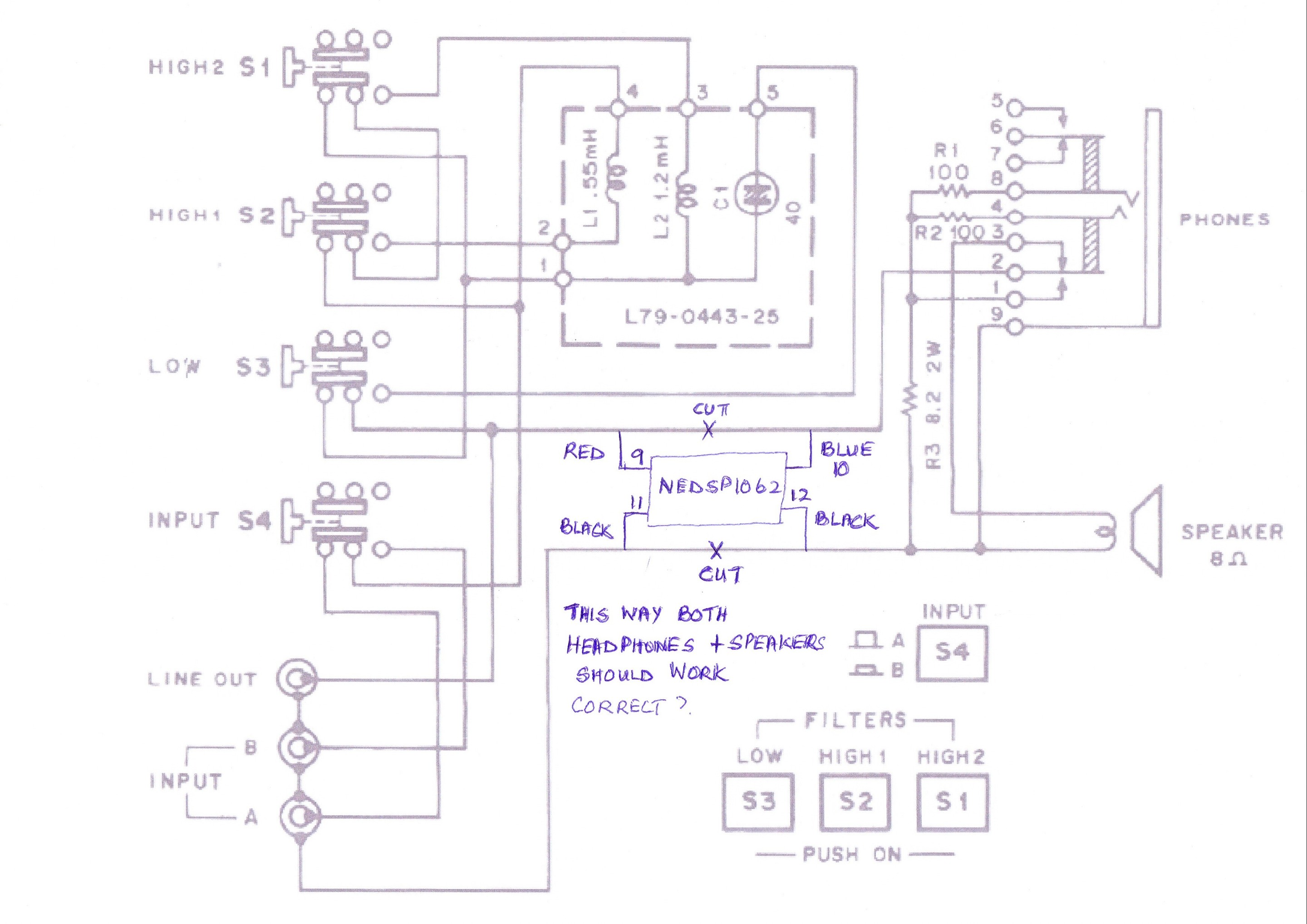

This can be installed in:
- Kenwood SP-23, SP-990, SP-31
- Elecraft SP3
- Yaesu SP-2000, SP-8, SP-21
- Icom SP-24, SP-38, SP-20
- TEN-TEC 307
Testimonials
The device is well built and highly effective in reducing noise while on the radio. I really like the device and it fits well into a small construction box. I love the ability to use it with various speakers and how effective it is clarifying noise on the air. Great product. - David Bisciotti KO4USA
Specification
DC Characteristics
|
Parameter |
Test Conditions |
Min. |
Typ. |
Max. |
Units |
|
Supply Voltage |
10 |
16 |
18 |
V |
|
|
Quiescent Current |
Vs = 10 V to 18 V |
5.4 |
7 |
mA |
|
|
Quiescent current with DSP On, no load and no signal |
Vs = 10 V to 18 V |
70 |
80 |
mA |
|
|
Current at Maximum Audio |
400mA |
Audio Characteristics
|
Parameter |
Test Conditions |
Min. |
Typ. |
Max. |
Units |
|
Output Power |
Vs = 10 V to 18 V |
5 |
7 |
W |
|
|
Input Sensitivity 4 Ω Load |
f = 1kHz Po = 0.5 W |
100 |
mV (p-p) |
||
|
Input Sensitivity 4 Ω Load |
f = 1kHz 6 Watts |
400 |
|
mV (p-p) |
|
|
3dB BW |
Po =1 W, DSP=Off RL = 8 Ω |
200 |
5000 |
Hz |
|
|
Distortion |
f = 1kHz, Pout =7 W, RL = 8Ω |
0.3 |
% |
||
|
Input Resistance |
When operating |
62 |
Ω |
||
|
Voltage Gain |
f = 1kHz |
16 |
|||
|
Efficiency |
f = 1kHz Po = 0.5 W |
>80 |
% |
Optional extras: PSU12-2A-WW, GB8M GroundBreaker
