ParaPro EQ20 Audio Unit With Parametric Equalisation
(£191.63 excl VAT)
The ParaPro EQ20 is a powerful 20W parametric equaliser that allows precise audio customisation for enhanced listening experiences, which is particularly beneficial for individuals with hearing loss.
- Dual-band parametric equalisation with ±10dB adjustment range from 100Hz to 10kHz, offering precise frequency control
- Delivers 10W per channel through a highly efficient Class-D amplifier with ultra-low latency of 38ms
- Versatile connectivity with mono/stereo inputs and multiple output options, including 4mm banana plugs and RCA connectors
- Compatible with 4 or 8 ohm passive speakers and includes a 3.5mm stereo headphone output
- Compact ABS case design with intuitive controls for Power/Volume, Bass (100Hz-1kHz), and Treble (1kHz-10kHz)
- Includes a complete accessory kit and operates on 12V DC power supply
Greatly improved audio for those with hearing loss
The bhi ParaPro EQ20 audio unit with parametric equalisation allows you to customise the sound of your audio and control which frequencies you want to boost or cut to suit your hearing. Unlike conventional tone controls or preset EQ settings, this unit enables users to target specific frequencies with remarkable precision, making it especially valuable for those with hearing loss who need to compensate for particular frequency ranges.
This versatile device integrates with existing audio setups, including bhi DSP noise cancelling units and speakers, to create a comprehensive audio enhancement solution. The combination of high-quality components, including the efficient Class-D amplifier design, ensures excellent sound reproduction while maintaining signal integrity.
Who is the ParaPro EQ20 for?
- Amateur radio
- Shortwave listening
- Commercial radio base stations
- General audio

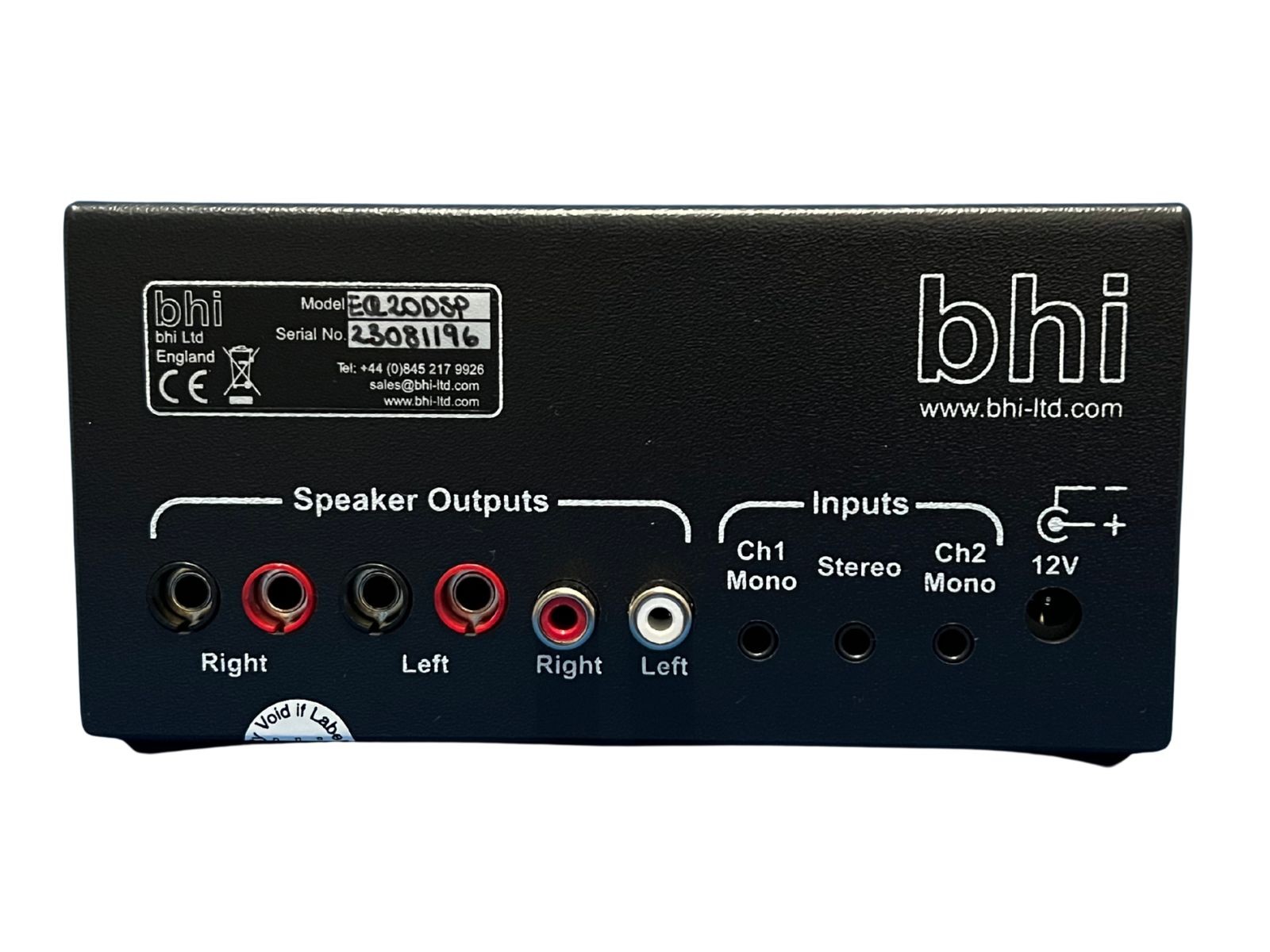

Choice of outputs and connections
Connect passive speakers to the left and right “Speaker Outputs” using the 4mm banana plugs or phono to 3.5mm mono adapters supplied. Use the “Source Select” button on the front panel to select the desired audio. Note: Powered speakers can be used with one of our LLC-1 Line Level Converter boxes, which have audio isolation transformers inside to protect the class D amplifier stage on the EQ20 unit.

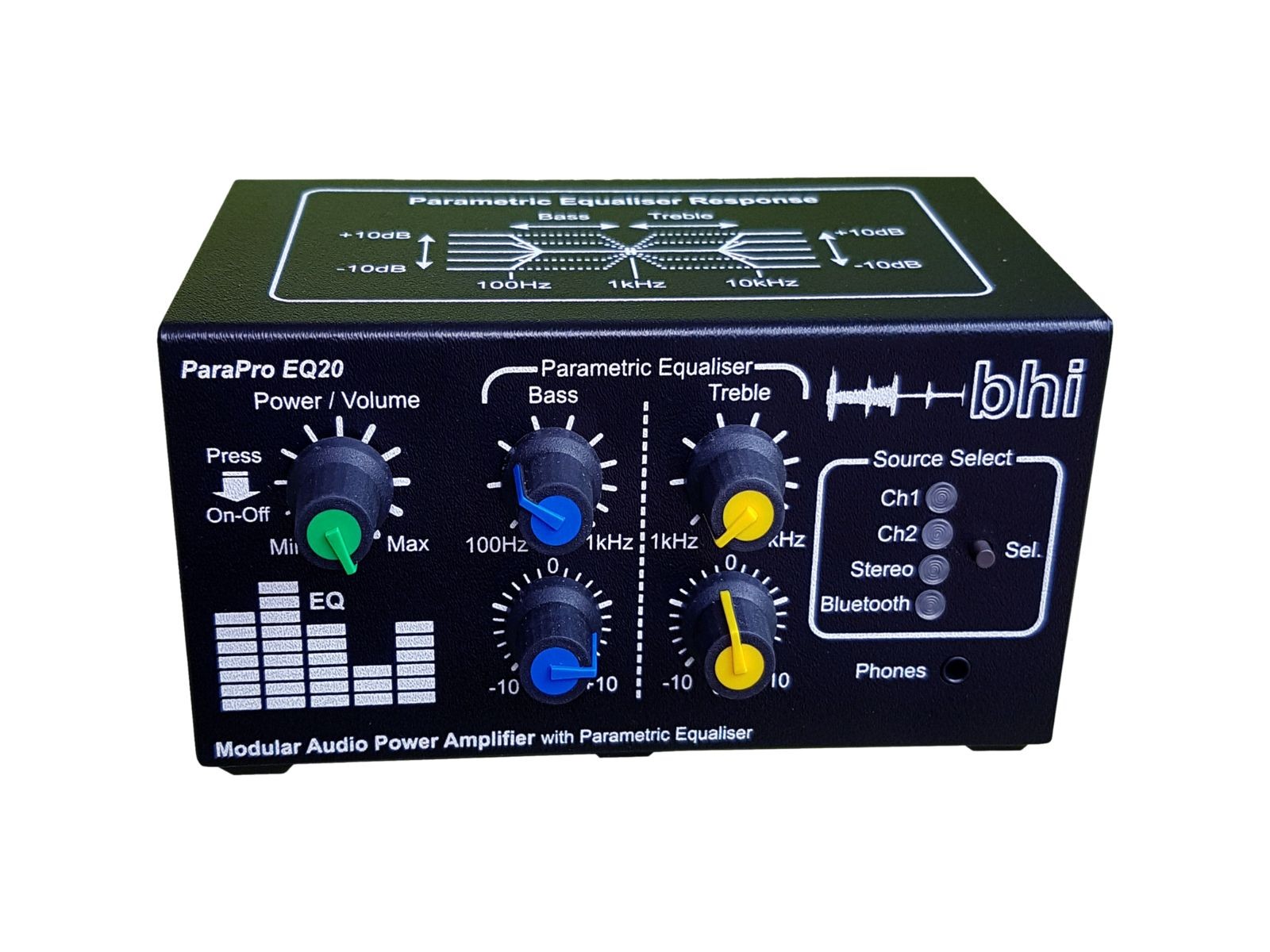

Easy-to-use controls

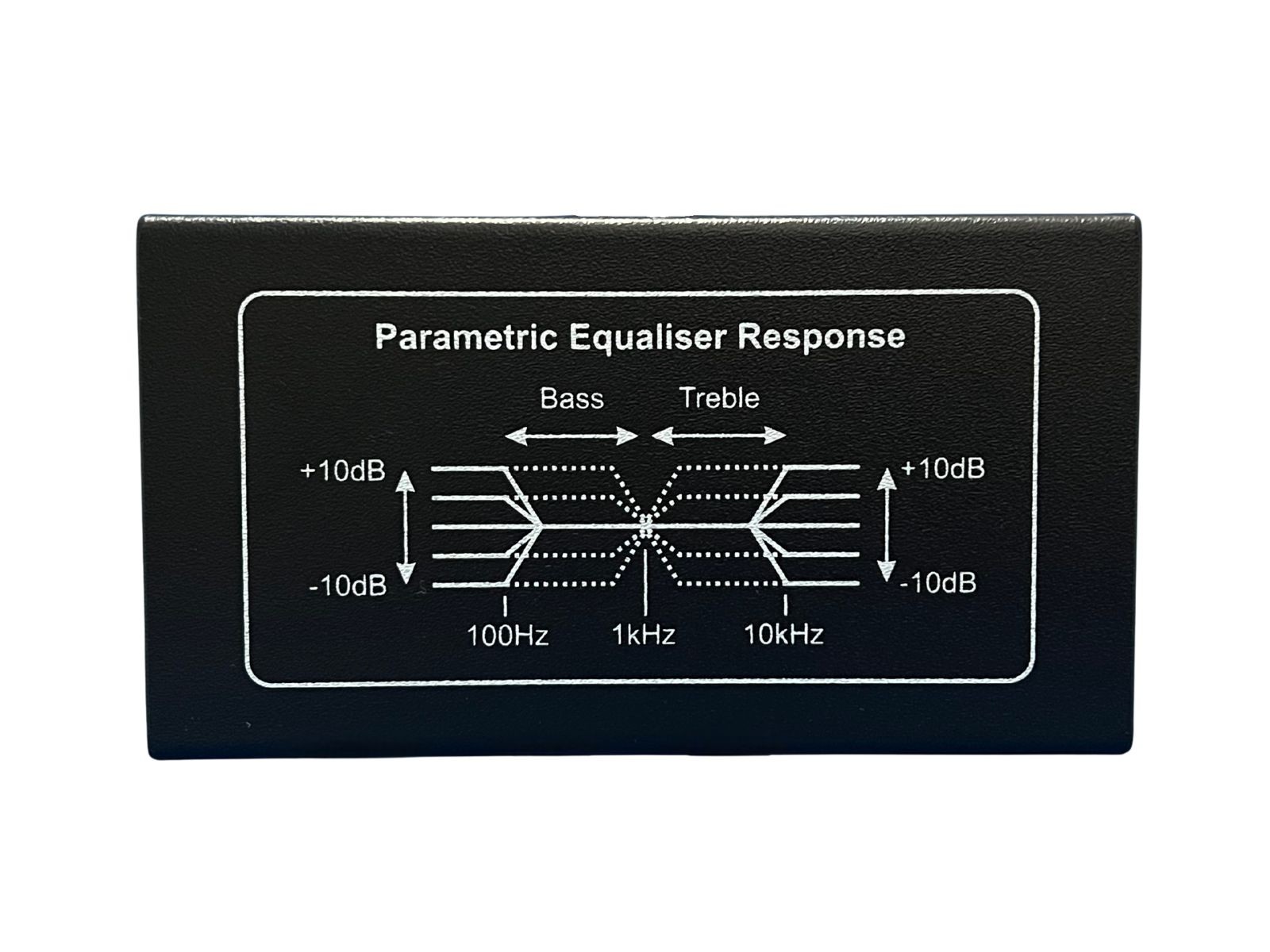

The EQ20 is housed in a quality compact ABS case. There are controls for Power/Volume along with two parametric equaliser adjustment controls labelled Bass and Treble, with the Bass centre frequency being adjustable from 100Hz to 1kHz and Treble covering 1kHz to 10kHz. Used together, these controls provide two bands of ±10dB adjustment from 100Hz through to10kHz.
Benefits of parametric equalisation
Unlike standard tone controls, graphic equalisation and preset EQ settings in a parametric equaliser allow you to select the precise frequency you want to adjust. This enables you to boost or cut the selected frequency, giving you much greater flexibility and accuracy in setting the audio to suit your hearing. This is especially beneficial to people with hearing loss.
Use with your existing bhi DSP noise cancelling unit
The ParaPro EQ20 unit is ideal for use with the bhi Dual In-Line, Compact In-Line and In-Line Module DSP noise cancelling units, enabling you to fine-tune the processed audio for greater clarity and intelligibility. It can also be used with the bhi DESKTOP DSP noise cancelling speaker via the headphone socket on the front.
Other products in the ParaPro range
Browse the full ParaPro rangeFeatures
- Parametric equaliser lets you to adjust your audio to suit your own hearing
- 10W audio per channel
- Class-D type audio amplifier for power efficiency and eliminate the need for bulky heatsinking
- Ultra low latency of 38mS
- One or two separate 3.5mm mono inputs or a single stereo audio input
- 4mm banana plug or RCA phono plug audio output connections
- Use with 4 or 8 ohm passive speakers
- 3.5mm stereo headphone output (Class AB)
- No complicated menus. Simple control of all functions
- Signal input overload feature
- 12V DC operation (2A)

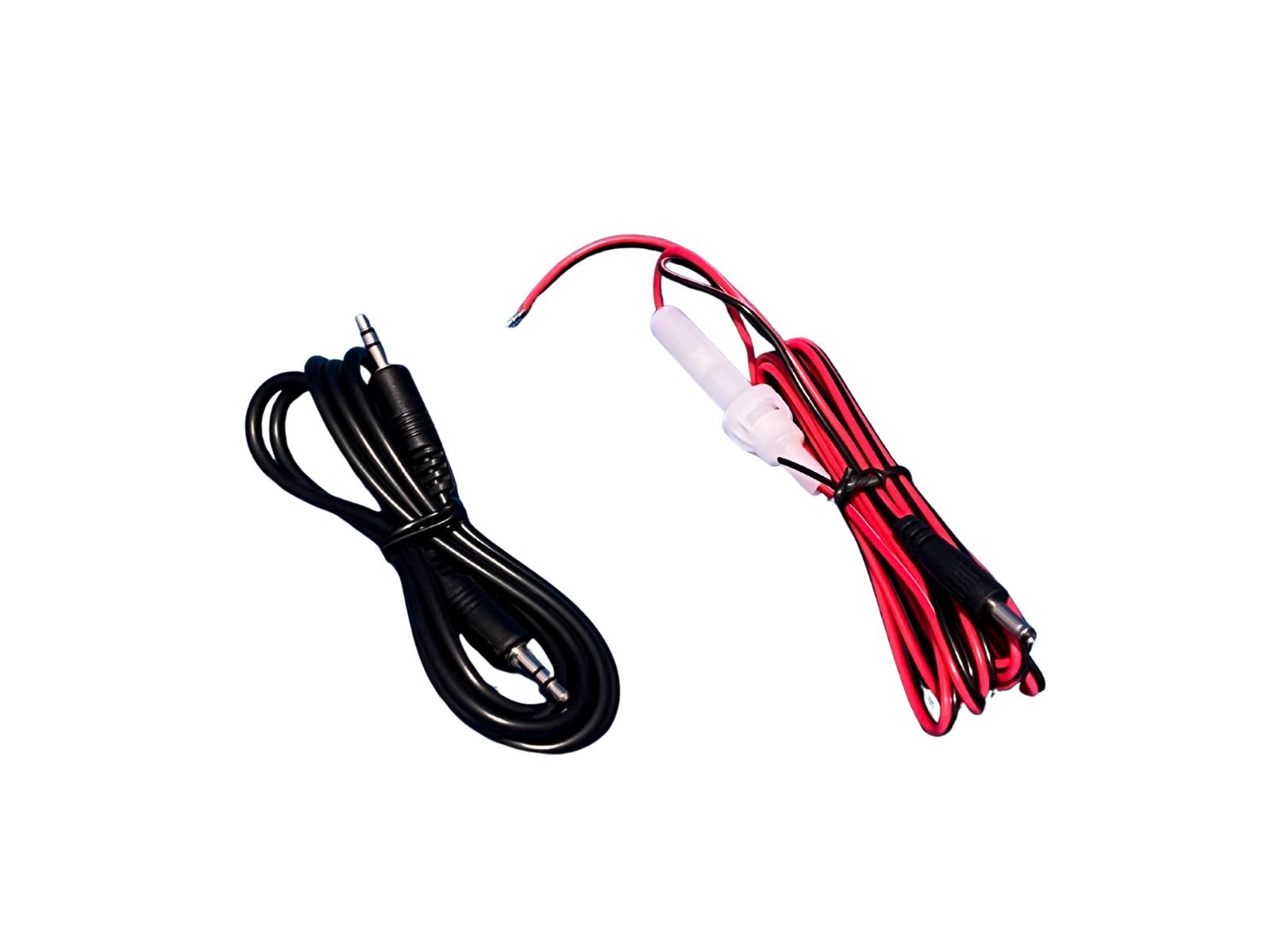

- User manual and full accessory kit supplied
- Dims: 145mm (W) x 75mm (H) X 100mm (D)
- Greatly benefits those with hearing loss
